ULX-D®
$187.00
Digital Wireless Systems
$187
Now Available –
Uncompromising Digital Wireless Audio
- 24-bit/48 kHz digital audio that delivers incredibly clear and accurate reproduction of the source material
- 20 Hz–20 kHz frequency range with flat response
- Greater than 120 dB dynamic range through the analog outputs
- 130 dB dynamic range (typical) using Dante and AES67 digital networked audio
- 60 dB of adjustable system gain easily accessible from the receiver front panel
- No transmitter gain adjustments needed: optimized for any input source
- Wide selection of trusted Shure Microphones
Extremely Efficient and Reliable RF Performance
- Up to 64 MHz overall tuning range (region dependent)
- Up to 17 active transmitters in one 6 MHz TV channel (23 on an 8 MHz TV channel)
- High Density mode enables up to 47 active transmitters in one 6 MHz TV channel (63 in one 8 MHz TV channel), with no audio quality degradation
- Rock-solid signal stability with no audio artifacts over the entire 100 meter line-of-sight range using standard supplied ½ wave antennas
- Selectable 1, 10, and 20 mW transmitter RF output power (comparable to 5 times the analog RF output power equivalent)
- Optimized scanning automatically finds, prioritizes, and selects the cleanest frequencies available
Scalable, Intelligent Hardware

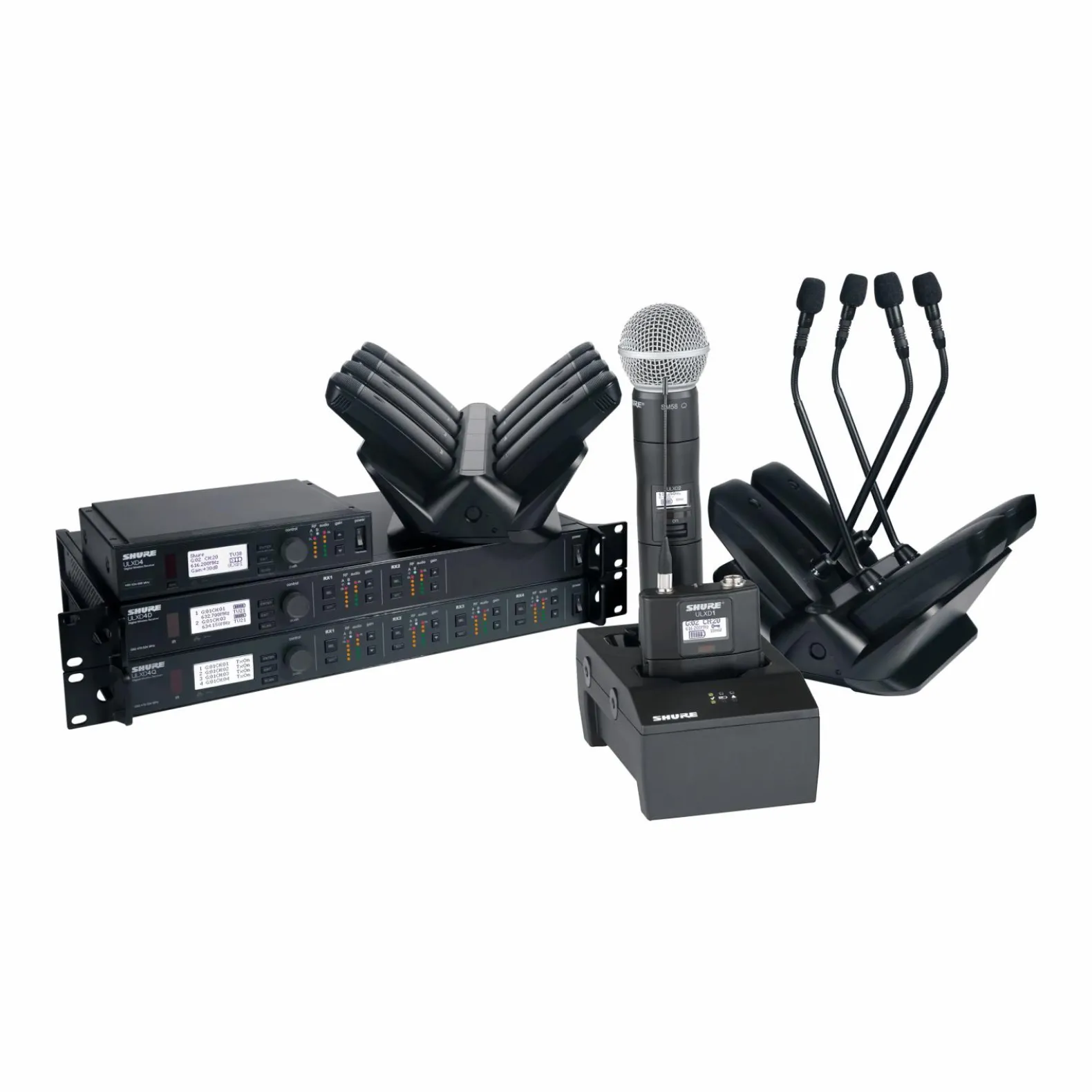

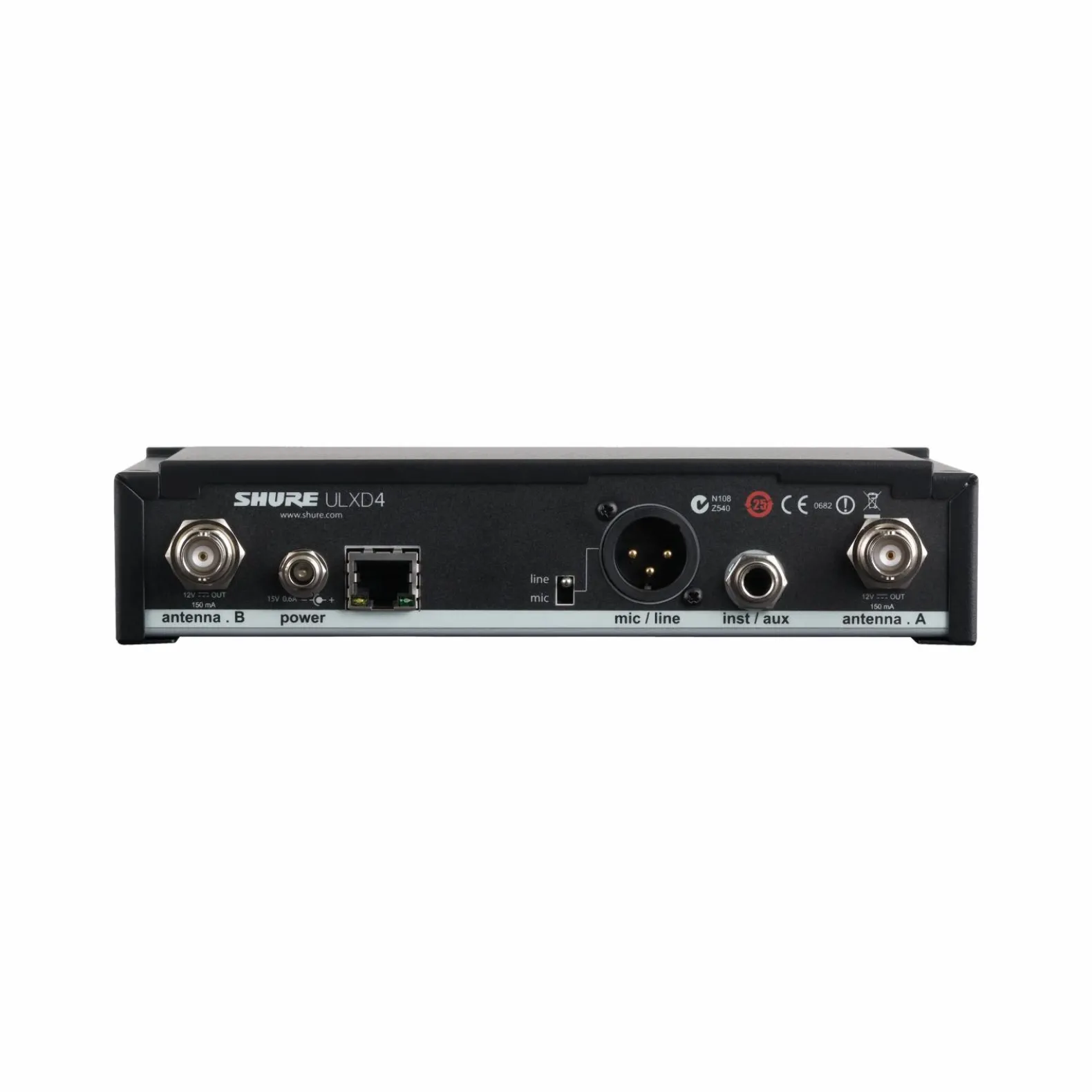

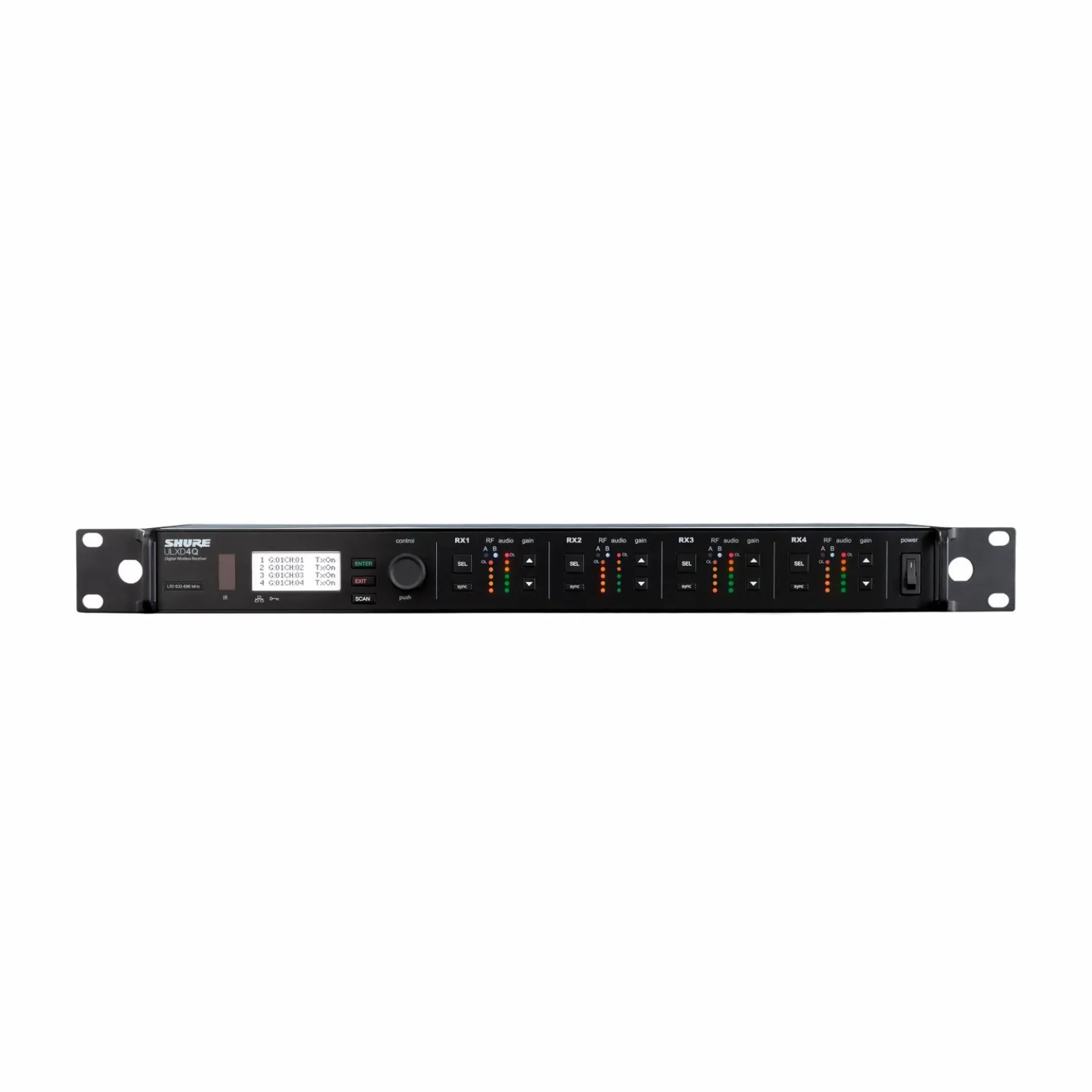

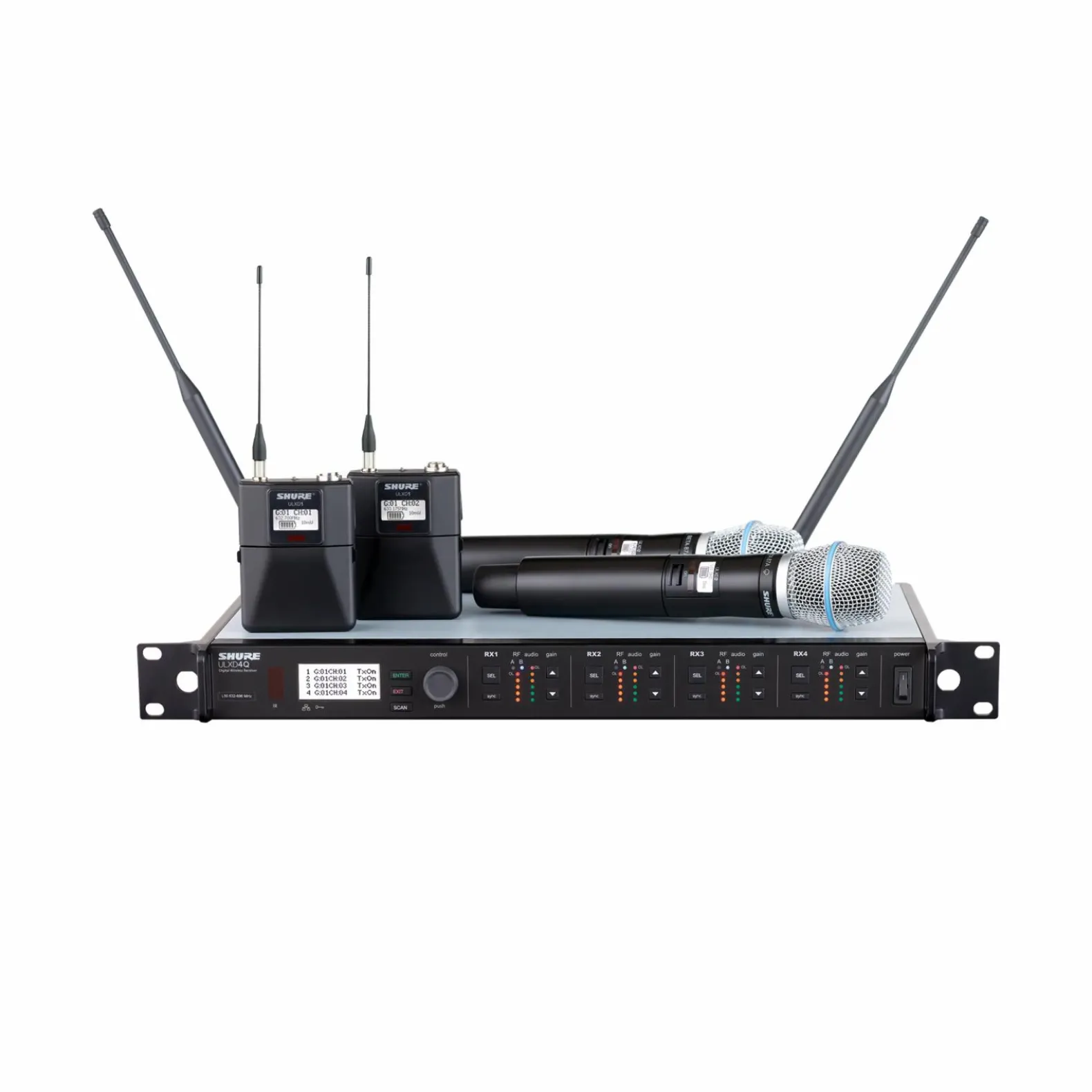

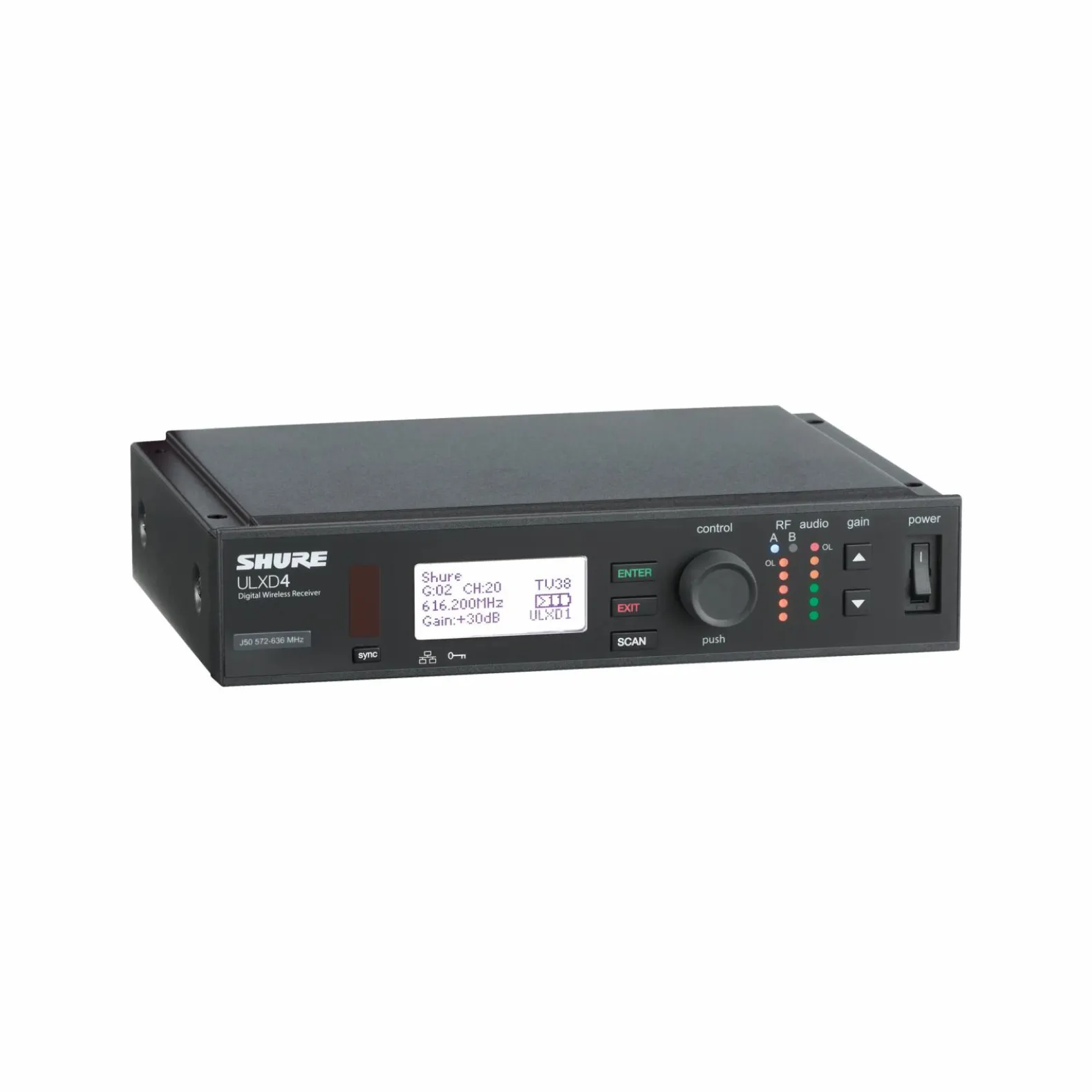

- Single (half-rack), Dual, and Quad (full-rack) receiver form factors for any size installation
- AES 256-bit encryption equipped for secure wireless transmission
- Ethernet networking for streamlined setup across multiple receivers
- Wireless Workbench® 6 software compatible for advanced frequency coordination, monitoring, and control
- Comprehensive 3rd party control and monitoring across subnets
- AXT600 Axient® Spectrum Manager compatibility
- Rugged metal housing on both transmitters and receiver

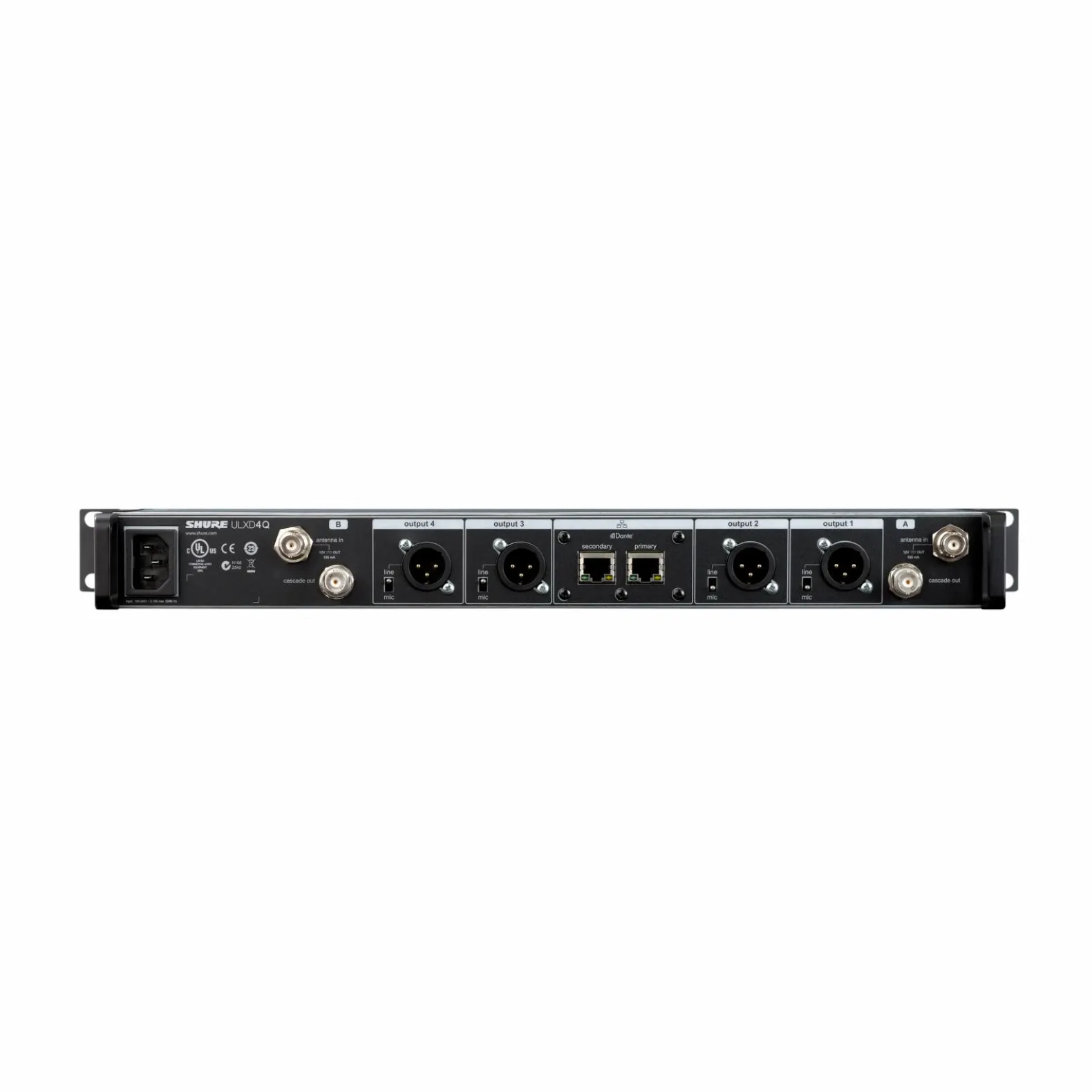

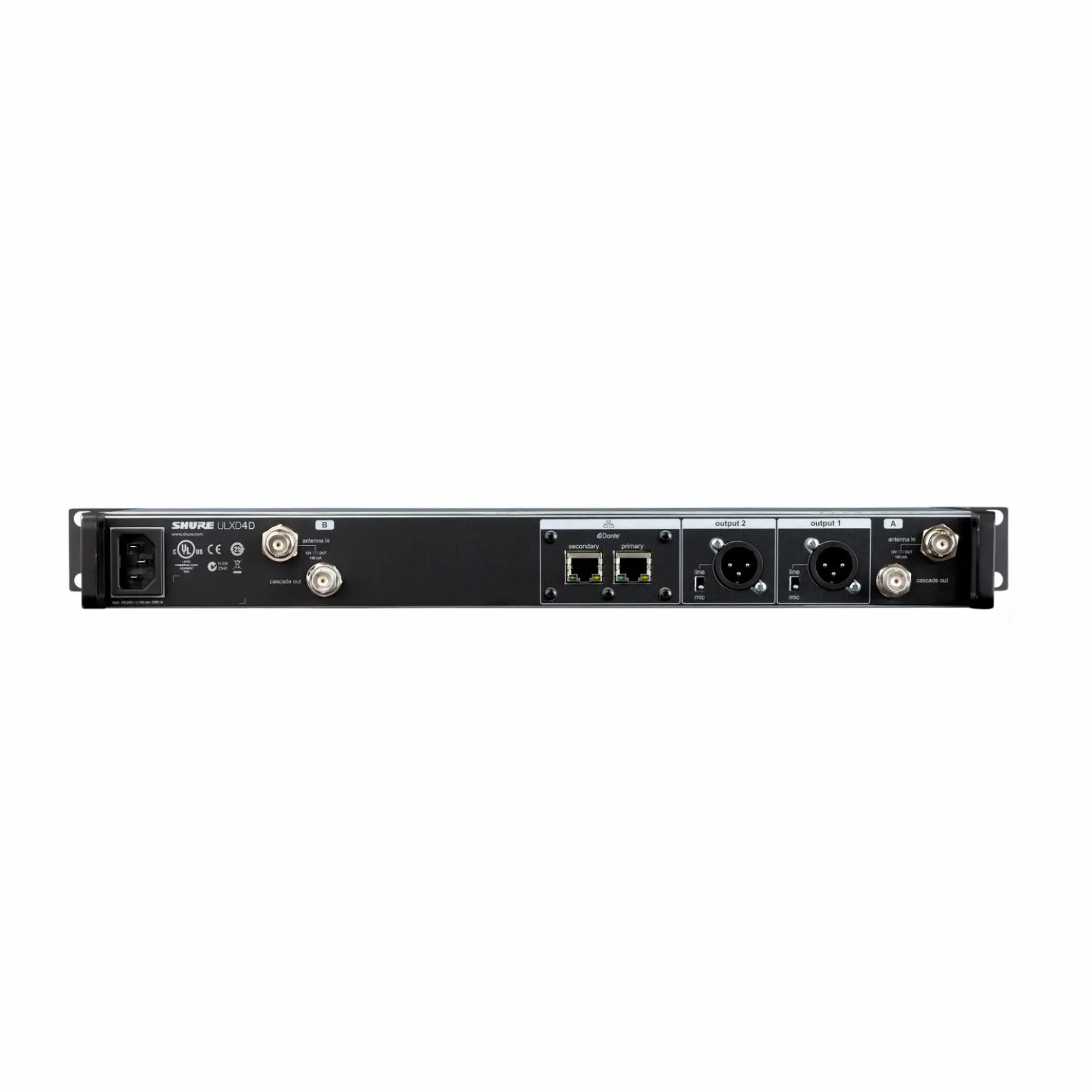

- Dual and Quad receivers additionally feature:
- RF cascade ports, internal power supply, and dual Ethernet ports
- Dante and AES67 digital networked audio over Ethernet
- Bodypack frequency diversity ensures uninterrupted audio for mission-critical applications
- Audio summing routes audio signal to multiple outputs
Shure Advanced Power Management
- Adapted from industry-leading Axient rechargeable technology
- Lithium-Ion chemistry and intelligent Shure battery circuitry results in rechargeable batteries with zero memory effect and precision metering
- Provides ULX-D transmitters with unmatched 11+ hours of performance time
- Transmitters and receivers display remaining battery life in hours and minutes accurate to within 15 minutes
- AA backwards compatibility
Shure ULX-D Digital Wireless offers uncompromising 24-bit audio clarity and extremely efficient RF performance with single, dual, and quad channel receivers for any size professional sound reinforcement application.
Scalable, intelligent hardware delivers the best performing digital wireless available, with a wide selection of trusted Shure microphones to choose from. Unmatched spectrum efficiency enables a dramatic increase in the number of simultaneous active transmitters on one TV channel, with rock-solid signal over the entire range. Optional rechargeable accessories eliminate the need for disposable batteries while offering extended run time and metering accuracy in hours and minutes. For secure transmission, all ULX-D components include AES-256 encryption.
Generations ahead of any other available system in its class, ULX-D brings a new level of performance to professional sound reinforcement.
Read our blog post for a rundown on how Wireless Workbench® and ShurePlus™ Channels software enhance the capabilities of Shure wireless systems and make remote monitoring easier.
Learn more about the reasons to choose UHF or VHF in our blog post .
